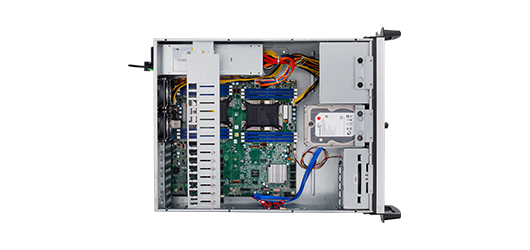

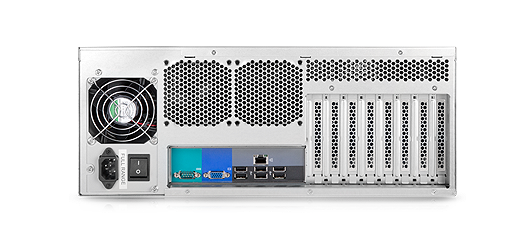

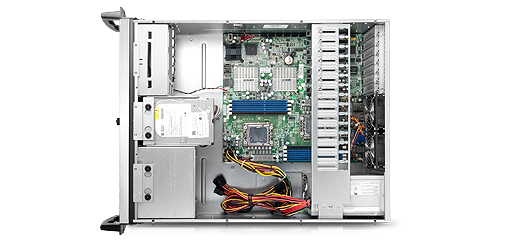

RM41300
4U High Performance Industrial Server Chassis
Equipped with entirely isolated anti-vibration drive cages, a dust-proof filter, and a reliable add-on card holder make it is ideal for high-performance IPC.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

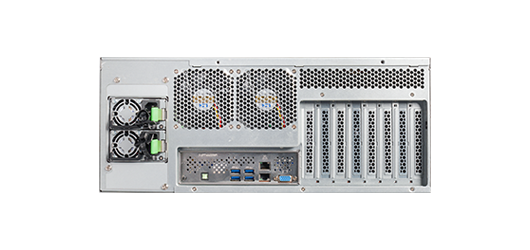

  • RM41300 8-Slot upgrade to support CRPS & 2 GPU*
  • Truly isolated anti-vibration design on internal HDD and drive cages
  • Optional second 3 x 5.25” drive cage for maximum configuration flexibility
  • Dedicated 80mm fan for HDD cooling
  • Card retainer to hold low profile and full-height add-on cards (RM41300)
  • Supports stand-alone installation via an optional kit (RM41300)

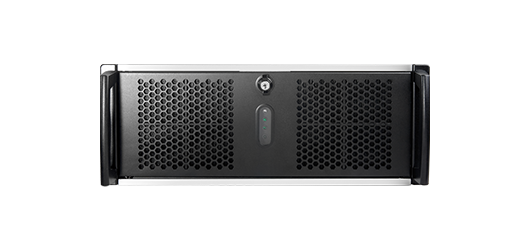

  • Supports 1-door or 2-door front bezel configuration (RM41300)
  • *With an 8-slot rear window, if you want to install a GPU card whose TDP is up to 320W, please give a space between each card for better thermal performance.
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 4U
    MB Form Factor EATX (12" x 13")
    Dimensions (D x W x H) With front bezel: 563.7 x 430.0 x 176.0 (mm)
    Without front bezel: 543.7 x 430.0 x 176.0 (mm)
    Drive Bays External 5.25":3
    External 3.5":1
    Internal 3.5":4
    Slim ODD:1
    PSU Form Factor -PS/2 single
    -1+1 CRPS Redundant (*Option: 1200W 1+1 2U CRPS module with PSU bracket)
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/USB3.0 (Option)
    System Security Intrusion Switch (Option)
    Key Lock on Front Panel
    Cooling Fans Front: 1 x 120 mm (120 x 25 mm), PWM
    Rear: 2 x 80 mm (Option)
    Expansion Slots 7 x Full Height and Full Length (*RM41300)
    8 x Full Height and Full Length (*RM41300G)
    HDD Backplane N/A
    Net Weight 12.5 kg/27.53 lb
    Gross Weight 15.5 kg/34.14 lb
    Front Bezel Option
    Cubic Feet 4.03
    Container Loading (Single Packing) 20’: 245, 40’: 524, 40’H: 592(single packing)
  • Category Description Revision Size Download
    Datasheet RM41300 Datasheet V1.2 11.5 MB
    User Manual RM41300 Quick Installation Guide V1.1 454.3 KB
    User Manual RM41300G Quick Installation Guide V1.1 290.8 KB
  • Product category Part. No# Description Support
    Adapter
    66H243131-001

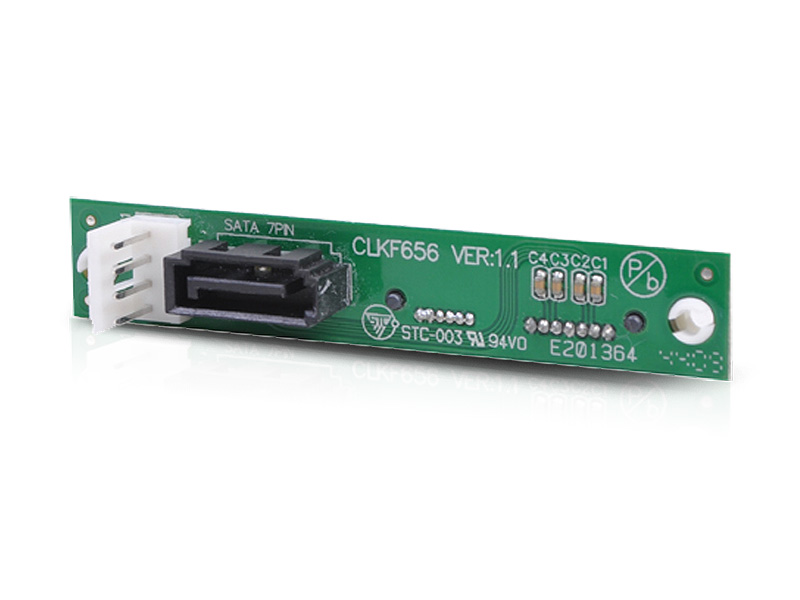

    Adapter, SATA to SATA, For Slim ODD
    Bezel
    84H341310-005
    Bezel, Metal, 2-Door, Black, RM413/423
    Bracket
    84H341310-027
    Bracket, PSU, 4U, For R2IS7651A-G/R21S7871A-G
    Cable
    84H342310-012
    Cable, w/PCB 80H02342301A0, USB3.0
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    Drive Cage
    84H342910-012
    Drive Cage, 3 x 5.25" Bay, For Tower Application
    Fan
    84H000010-058
    Fan, 80MM, 3P3C, T25, Ball Bearing, L650MM, AVC
    Fan
    84H331610-047
    Fan, 80*T25mm, L300mm, Ball, 4500RPM, 4P4C, Sunon
    Fan
    84H342310-004
    FAN Module, 120x25mm
    Foot Stand
    84H342210-002
    Foot Stand, 4 pcs/set, Black, RM422/RM413/RM423
    Holder
    84H342910-012
    ODD Cage Kit, For Tower Application, RM413/RM423
    Power Supply
    132-20650-0701C

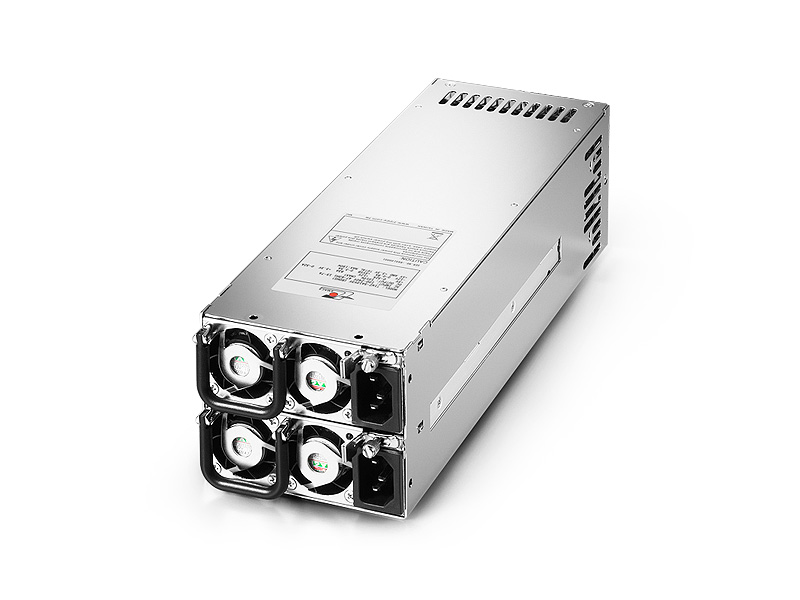

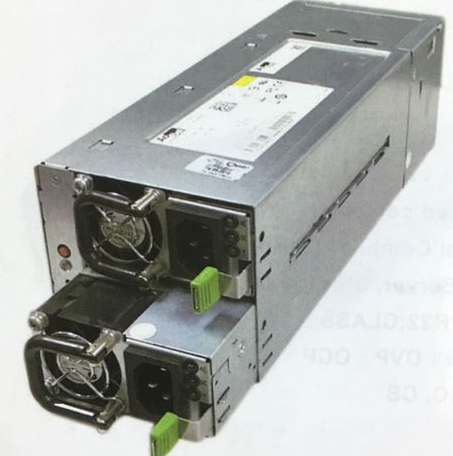

    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, PM Bus V1.2 (Install in chassis)
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    32H2062000202
    PSU, 1+1 Redundant, 620W, C2W-5620V, PMBus 1.1
    Power Supply
    32H2065001101
    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000202

    PSU, 1+1 Redundant, 820W, C2W-5820V, PMBus 1.1

    PSU
    132-20650-0701C1
    PSU, Redundant1+1, 650W, P24:740/P8:640/P4+4:650MM, C0, Acbel
    PSU
    132-20875-0700C1

    PSU, Redundant1+1, 875W, P24:740/P8:640/P4+4:650mm, C0, ACBEL

    PSU bracket
    384-MIX00430B0A0

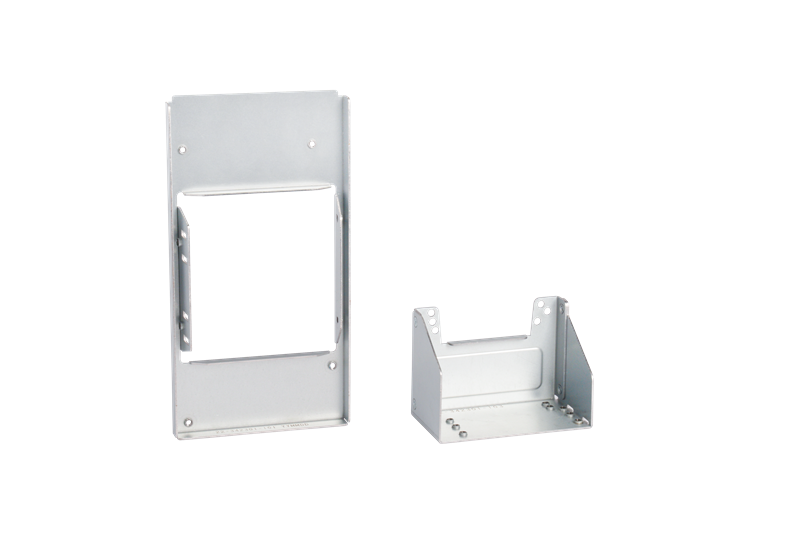

    PSU bracket only
    Power bracket to support CRPS for FSP or Acbel
    PSU module+bracket
    384-PSU00025B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 1200W short version FSL026-7HBG
    PSU module+bracket
    384-PSU00026B0A0
    PSU module+bracket
    CRPS power module +bracket for Acbel 1200W long version R2CU5122A
    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less
    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

    Rail
    84H342310-001
    Rail, 20", RM413/423/RM422, Non Tool-Less
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK32303T3
    SK, 3-in-2, HDD Module, SATA/SAS, 12G,BK, Single Pack
    SK
    SK33502T3
    SK, 5-in-3 , 3 x ODD Bays to 5 x 3.5"  HDD Bays (12g SATA II/SAS)
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK
    SK51102T3
    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    SK
    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
