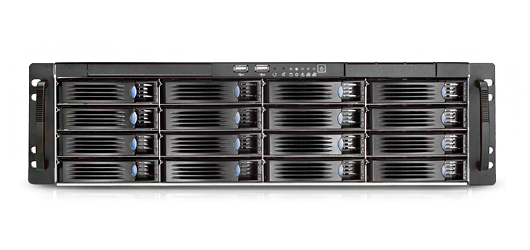

RM31616
3U 16-bay High Dense Storage Server Chassis
Featuring sixteen hot-swap HDD bays, 12Gb/s backplane, redundant PSU and anti-vibration fans provide reliability and performance of large enterprise.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare

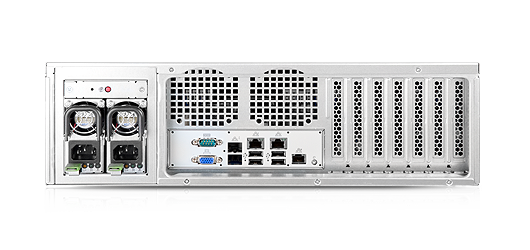

Features & Benefits
  • Supports 16 x 3.5" hot-swap HDDs, slim ODD, and slim FDD

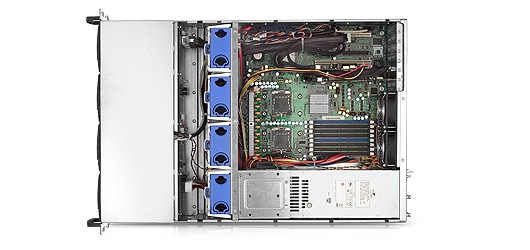

  • Innovative anti-vibration fan bar for middle hot-swap fan
  • Optional 2.5” OS HDD with SK51101 or SK51102
  • Optional bracket for internal 3.5” or 2.5” HDD
  • Supports 12Gb/s 16-port Expander backplane
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 3U
    MB Form Factor E-ATX (12”x13”)
    Dimensions (D x W x H) 655.3 x 432 x 132 (mm)
    27.8” x 17” x 5.2”
    Drive Bays Slim FDD:1
    Slim ODD:1
    3.5" Hot-swap:16
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status
    1 x HDD Activity
    1 x LAN Activity
    1 x Fan Failure and Overheat
    Front Control 1 x Power On/Off
    1 x Alarm Mute
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    System Security Intrusion Switch
    Cooling Fans Middle: 4 x 80mm (T=38mm), Hot-swap , Rear: 2 x 80mm (Option)
    Expansion Slots 7 x Full Height and Full Length
    HDD Backplane 12Gb/s mini-SAS HD w/Expander
    Net Weight 15.2kg
    Gross Weight 19.4kg
    Front Bezel Option
    Cubic Feet 5.07
    Container Loading (Single Packing) 20’: 196, 40’: 404, 40’H: 454
  • Category Description Revision Size Download
    Datasheet RM31616 Datasheet V1.2 1.0 MB
    Firmware Intel S2600CW SDR for SKU RM31616E2-R875CW X00 7.2 KB
    User Manual 3Gb/s 16-port 3.5" mini-SAS Backplane(80H103316-001), Rev. A2/B0 V1.0 265.1 KB
    User Manual 6Gb/s 16-port 3.5" mini-SAS Backplane(80H10331604A0) V1.0 648.0 KB
    User Manual 6Gb/s 16-port 3.5" mini-SAS Expander Backplane(80H10331605A0) V1.0 2.9 MB
    User Manual LED Board(80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM31616 Quick Installation Guide V1.1 544.0 KB
  • Product category Part. No# Description Support

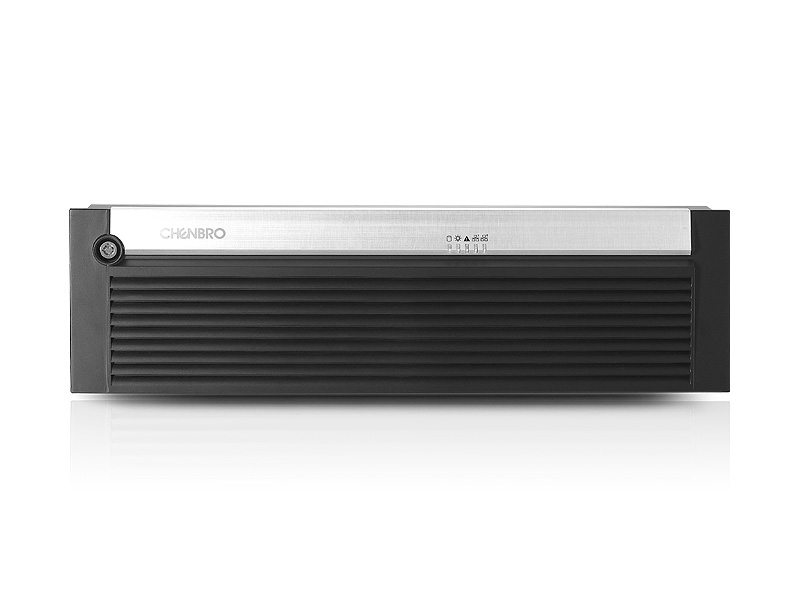

    Bezel
    84H331610-016
    Bezel, SilFox, RM31616
    Cable
    26H03313601A0
    Cable, USB 3.0 REV.A0, Internal 20P to Type a Plug
    Cable
    26H113215-030
    Cable, 36Pin, MINI SAS to 36Pin Mini SAS, 600mm, Miradee
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA

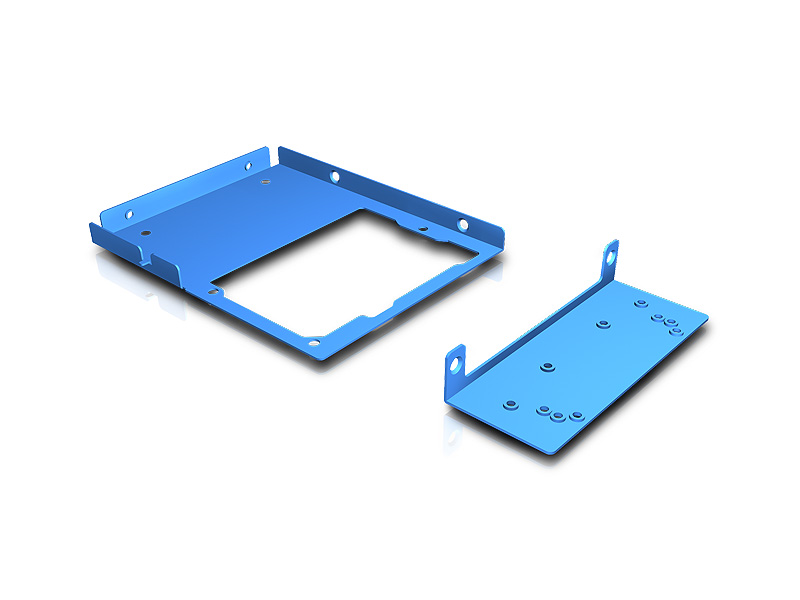

    HDD Holder
    84H331610-024

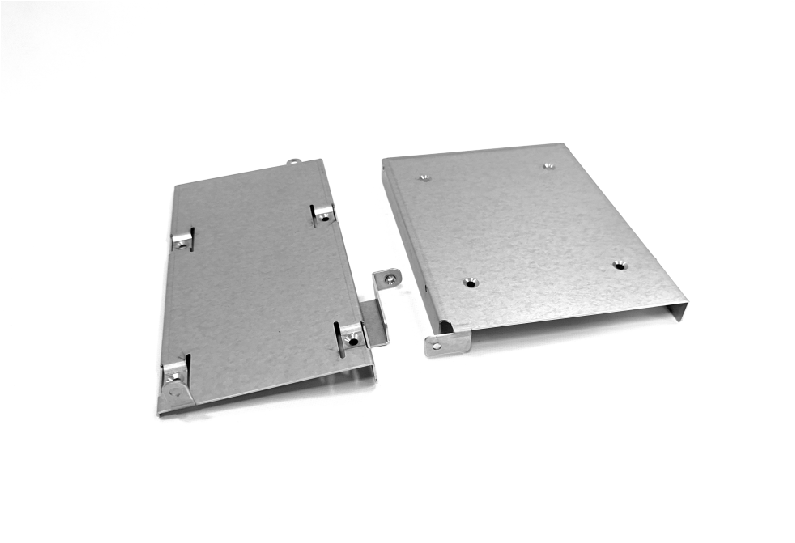

    Bracket, 2.5" (2pcs), RM31616
    HDD Tray
    84H321710-032
    Tray, HDD Tray, 3.5" Dummy, BK
    HDD Tray
    84H533510-024
    Tray, HDD, New 3.5" Tray, BK, 9 Hole HDD Tray
    LED BOARD
    380-31603-3000A1
    LED, USB 3.0
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less
    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

    SK
    SK51102T3
    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU Rear Window Slide Rail
    RM31616E3_R875 12"x13" 4 x 8038 mm PWM 12 Gb/s SAS Expander 875W 1+1 Redundant 7-Slot,FF Option
    RM31616M2 12"x13" 6 Gb/s mini-SAS Option 7-Slot,FF Option
    RM31616M2-R875 12"x13" 4 x 8038 mm PWM 6 Gb/s mini-SAS 875W 1+1 Redundant 7-Slot,FF Option
