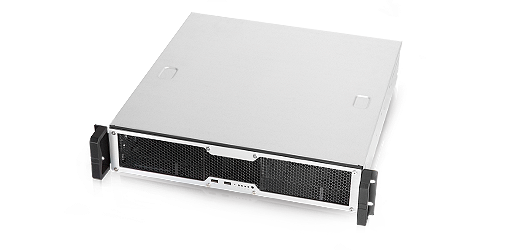

RM24100
2U Feature-Advanced Industrial Server Chassis
With front access PS/2 PSU, anti-vibration drive cage and dust-proof front bezel, it delivers a trusted platform for industrial applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Depth 18” of chassis for space-sensitive applications

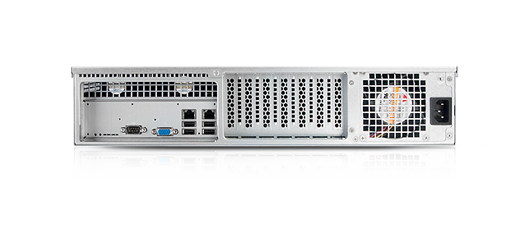

  • Modular 3-slot riser or 7-slot low profile rear window for flexible configuration
  • Cushion on 3.5” and 2.5” HDD cages to depress HDD vibration

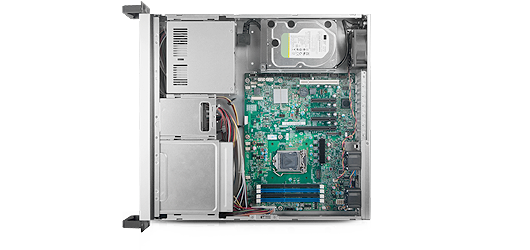

  • Removable drive cages for easy installation
  • Supports PS/2 PSU and other standard components to lower TCO
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Form Factor 2U
    MB Form Factor ATX (12” x 9.6”)
    Dimensions (D x W x H) 457.0 x 430.0 x 88.1 (mm)
    18.00” x 16.93” x 3.47”
    Drive Bays External 5.25":1
    External 3.5":1
    Internal 3.5":2
    Internal 2.5":2
    PSU Form Factor PS/2 Single (Front)
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 80 x 32 mm (1), Option
    Rear: 80 x 32 mm (1),
    40 x 28 mm (2), Option
    Expansion Slots 3 x Full Height or 7 x Low Profile
    HDD Backplane N/A
    Net Weight 6.9 kg/15.2 lb
    Gross Weight 9.4 kg/20.70 lb

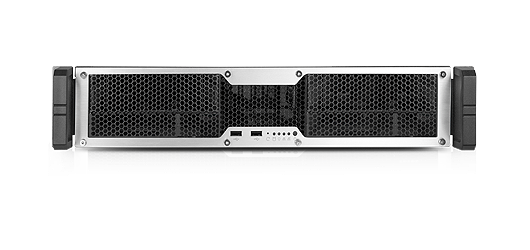

    Front Bezel Aluminum bezel frame or two-door bezel with air filter
    Cubic Feet 2.50
    Container Loading (Single Packing) 20’: 388, 40’: 788, 40’H: 940
  • Category Description Revision Size Download
    Datasheet RM24100 Datasheet V1.2 1.1 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 1.3 MB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
    User Manual RM24100 Quick Installation Guide V1.1 574.7 KB
  • Product category Part. No# Description Support
    Cable
    26H03313601A0
    Cable, USB 3.0 REV.A0, Internal 20P to Type a Plug
    Cable
    26H11324102A0
    Cable, PSU, Wire Extension, 24P to 24P, 250mm
    Cable
    26H11324103A0
    Cable, PSU, Wire Extension, 8P to 4P+4P, 400mm
    Cable
    84H324110-010

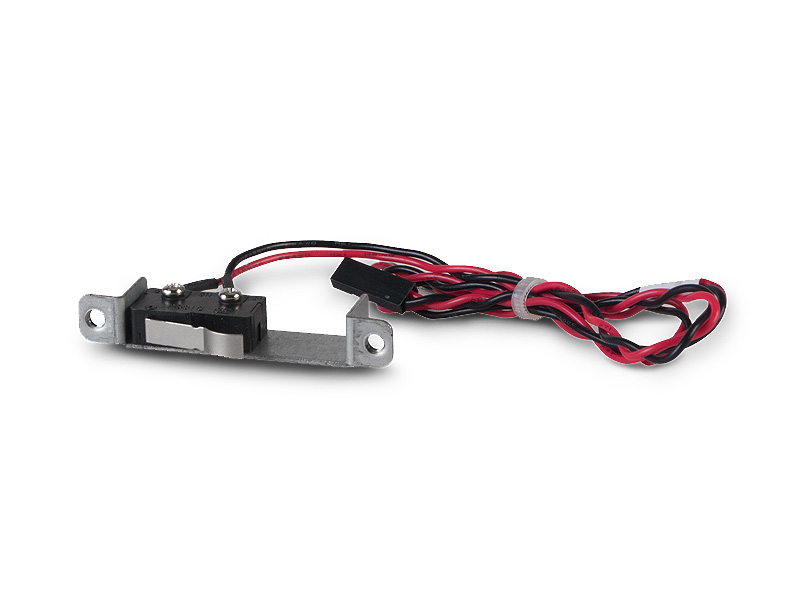

    Cable, Intrusion, 2-Pin, 500mm
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    Drive Cage
    84H324110-007
    Drive cage, 1x5.25"+1x slim ODD bays, exposed
    Drive Cage
    84H324110-008
    Drive cage, 1x5.25"+1x3.5" bays, exposed
    Fan
    30H080032-101
    Fan, 8032 + L300, 4400RPM, Ball, YS
    Fan
    30H080032-112

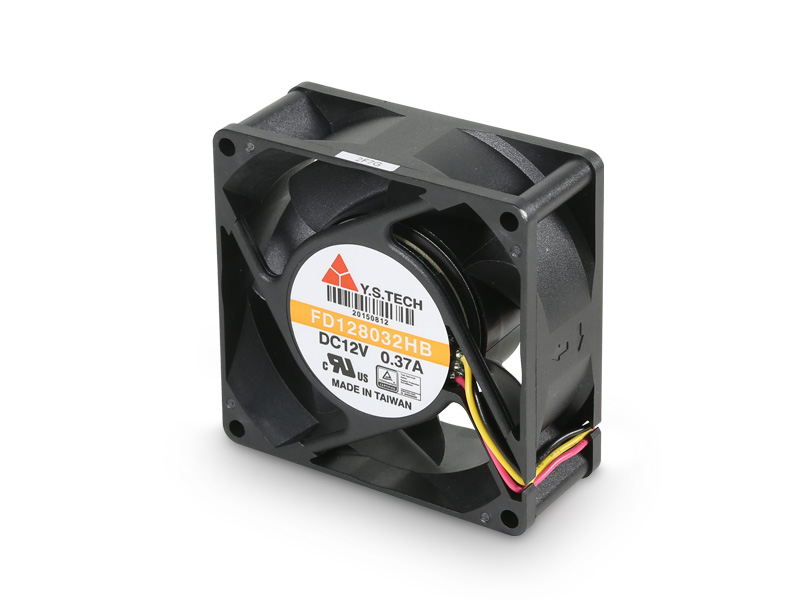

    Fan, 80*32, L300mm(4P4C), Ball, 5000RPM, FD128032HB-P, Y.S

    Fan
    84H324110-009
    FAN, 1pcs AVC 40x28 Ball Bering, L310mm (4P4C), w/ fan guard For Rear Window
    Fan
    84H324210-004
    Fan, 1pcs YS 80x32 Ball Bering , L300mm (3P3C), for Rear Window
    Power Supply
    32H1030000706
    PSU, 300W, PS/2 Single, FSP300-70PFL, 80+, w/80mm fan
    Power Supply
    32H1030001104
    PSU, 300W, PS/2 Single, Acbel PC7036-7H1G, 80+, w/80mm fan
    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less
    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

    Rail
    84H342310-001
    Rail, 20", RM413/423/RM422, Non Tool-Less
    Rear Window
    84H323610-006

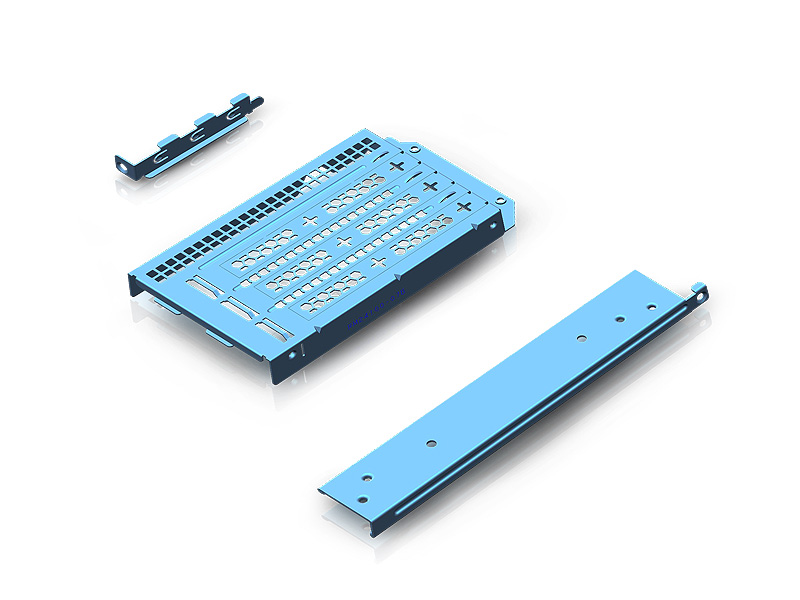

    Rear Window, 3-slot, Full Height
    Riser BRKT
    84H323610-006
    Bracket, Rear Window, STD RW with 3-Full Height PCI, RM241/RM23
    SK
    SK31101T3
    SK, 12g, 5.25" to 1 x Hot-swap 3.5" HDD Bay
    SK
    SK41101-BK-H
    SK, HDD Tray, Internal, 1 x 5.25" to 3.5" HDD/FDD Bay, BK
    SK
    SK41202
    SK, 1 x 5.25 (internal) to 1 x Slim ODD+ internal 3.5 HDD/FDD Bay
    SK
    SK41203
    SK, HDD Tray, Internal, 1 x 3.5" HDD/FDD to 2 x 2.5" HDD Bays
    SK
    SK51102T3
    SK, 1x2.5"HDD Bay in Slim ODD Cage,w/12gb/s SATA BP
    SK
    SK51201T3
    SK, 1 x 3.5" to 2 x 2.5" HDD Bay, w/12gb/SATA BP
    Slide Rail
    84H323610-034
    26“, P2P:22.1" to 35.8", Traveling Distance 27.5", Loading Weight 45.0 Kg, Tool-less
    Slide Rail
    84H341300-002

    20“, P2P:23.6" to 34.1", Traveling Distance 27.7", Loading Weight 27.0 Kg, Non Tool-less
