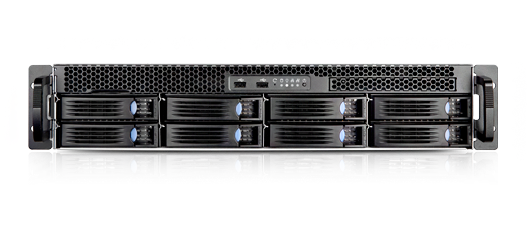

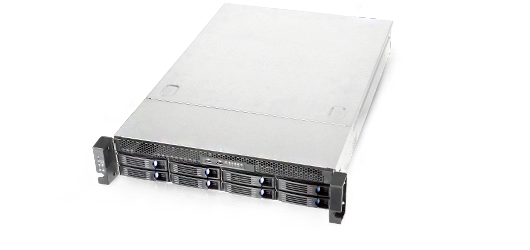

RM23608
2U Entry General Purpose Server Chassis
Accommodate with eight 3.5" HDD hot-swap bays, high efficient thermal ventilation design and flexible fan configurations can best address for broad range application demands.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare

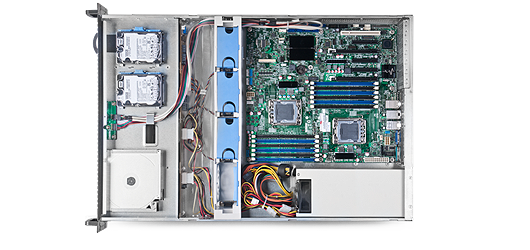

Features & Benefits
  • Supports 12Gb/s 8-port mini-SAS HD backplane
  • Backplane with multi sensors for best smart fan control
  • Fans baffle solution can best manage air flow for thermal

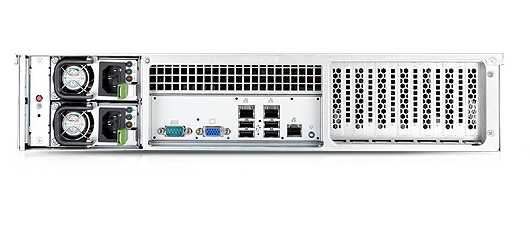

  • Easy PCIe 7-slots to 3-slots conversion on rear window
  • Front access information tag
  • Two internal 2.5" drive bays for OS mirroring
  • HDD carrier support for 2.5" SSD or 3.5" HDD
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    MB Form Factor E-ATX (12” x 13”)
    Dimensions (D x W x H) 659.4 x 432 x 88.1 (mm)
    25.96” x 17” x 3.47”
    Drive Bays 3.5" Hot-swap:8
    Slim ODD:1
    Internal 2.5":2
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status
    1 x HDD Activity
    2 x LAN Activity
    1 x Fan Failure & Overheat
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 3 x 80mm (T=25mm), PWM, MAX, Rear: 2 x 40mm (Option)
    Expansion Slots 3x Full Height & Length or 7x Low Profile
    HDD Backplane 12Gb/s
    Net Weight 11.0kg
    Gross Weight 12.7kg
    Front Bezel Option
    Cubic Feet 3.05
    Container Loading (Single Packing) 20':314, 40':638, 40'H:690
  • Category Description Revision Size Download
    Datasheet RM23608 Datasheet V1.2 1.1 MB
    Firmware Intel S2600CW SDR for SKU RM23608M2-R875CW X00 7.3 KB
    Quick Installation Guide(QIG) RM23608_QIG V1.1 14.7 MB
    User Manual RM23608 12Gbs 8-port 3.5 mini-SAS HD Backplane V.1.0 451.5 KB
    User Manual 6Gb/s 8-port 3.5" SATASAS Backplane (80H10323601A1), Rev. A1 V1.0 834.6 KB
    User Manual 6Gb/s 8-port 3.5" mini-SAS Backplane(80H10323604A1), Rev. A1 V1.0 679.0 KB
    User Manual LED Board(80H03324101A0), Features and Jumper Settings V1.0 762.6 KB
  • Product category Part. No# Description Support
    Bezel
    84H321410-049
    Bezel, Third Type, RM21706
    Bezel
    84H323610-009

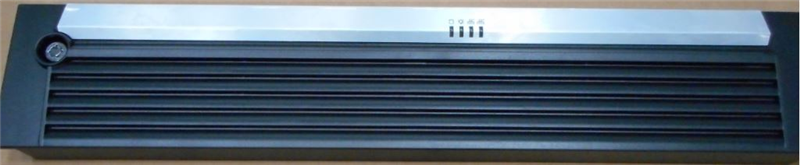

    Bezel, Silver Fox, RM23608
    Bezel
    88H321500-001
    Bezel, Plastic Panel, BKCC1012
    Cable
    CL-PWR-US
    Cable, Power Cord, 3-Pin, 6ft, 120V USA
    HDD Tray
    84H313110-022

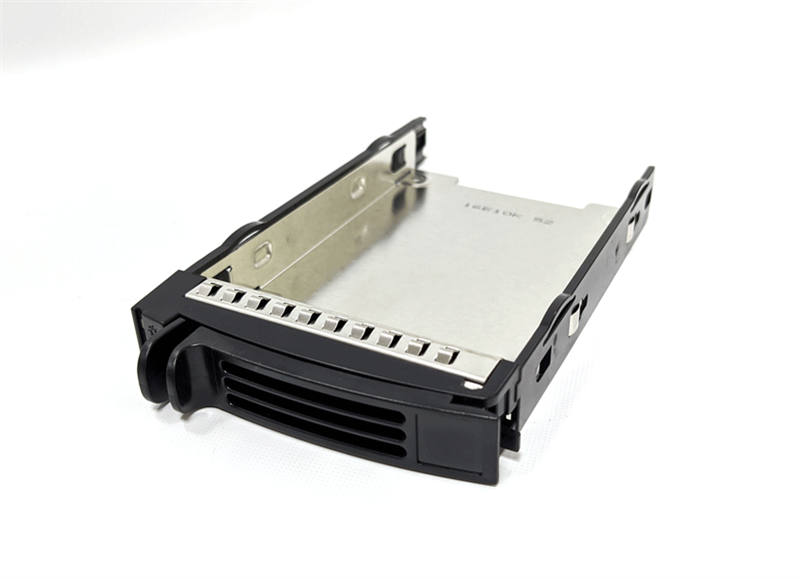

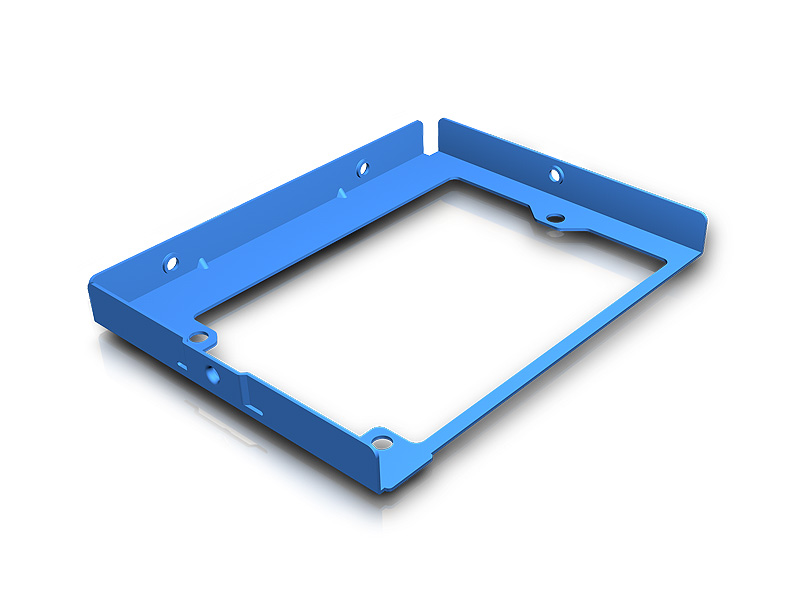

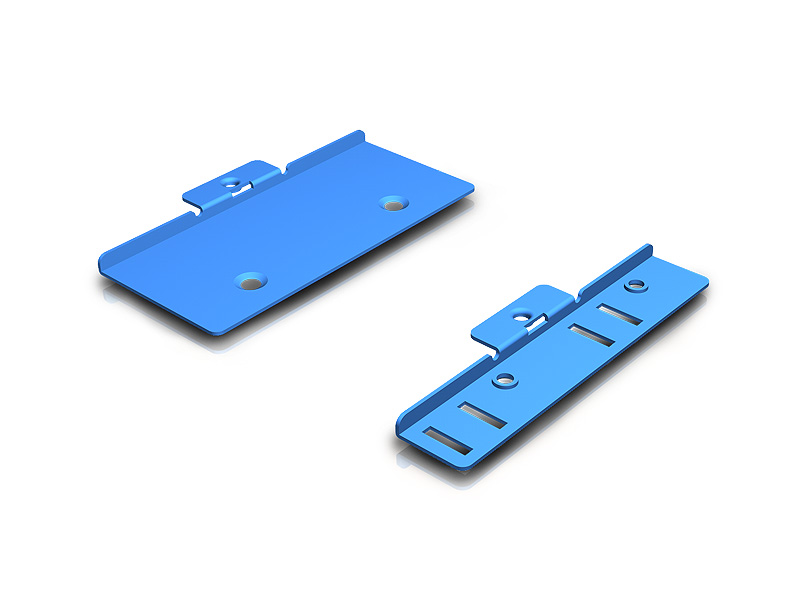

    Tray, HDD Tray, 2.5" Tray (SPTE Material)
    HDD Tray
    84H321710-032
    Tray, HDD Tray, 3.5" Dummy, BK
    HDD Tray
    84H533510-024
    Tray, HDD, New 3.5" Tray, BK, 9 Hole HDD Tray
    Power Supply
    132-20650-0701C0
    PSU, Redundant 1+1, 650w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Power Supply
    132-20875-0700C0
    PSU, Redundant 1+1, 875w, P24:740/P8:640/P4+4:650mm, C0, Acbel
    Rail
    84H323610-034
    Rail, 26", Tool-less, 2U-4U, 3A61-661, w/Plate x 4, Tool-less
    Rail
    84H341300-002

    Rail, King Slide 21.9" (2pcs/set), 2U - 4U

    Riser BRKT
    84H323610-006

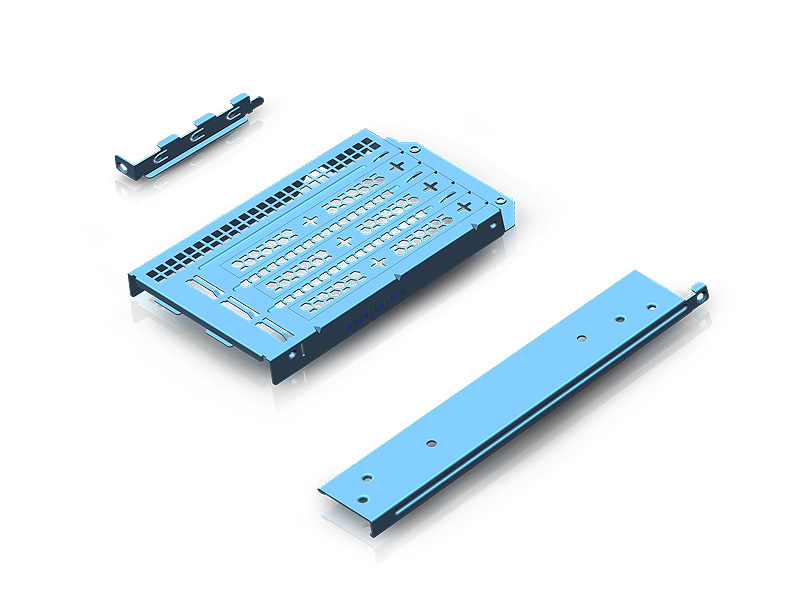

    Bracket, Rear Window, STD RW with 3-Full Height PCI, RM241/RM23
    Click Part. No# to view item picture
  • Order Code M/B Size Middle Fan HDD Backplane PSU Rear Window Slide Rail
    RM23608M3-500L 12"x13" 3x 8025 PWM 12Gb/s Mini-SAS 500W, Single 7-Slot,LP Option
    RM23608M3-650L 12"x13" 3x 8025 PWM 12Gb/s Mini-SAS 650W, Single 7-Slot,LP Option
    RM23608M3-L
    RM23608M3-R650L 12"x13" 3x 8025 PWM 12Gb/s mini-SAS 650W 1+1 Redundant 7-Slot,LP Option
    RM23608M3-R875L 12"x13" 3x 8025 PWM 12Gb/s Mini-SAS 875W 1+1 Redundant 7-Slot,LP Option
