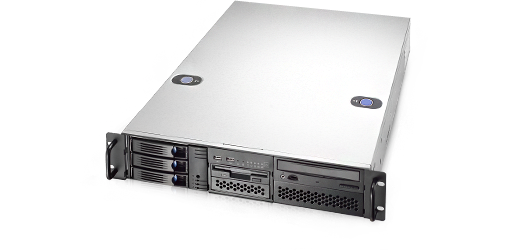

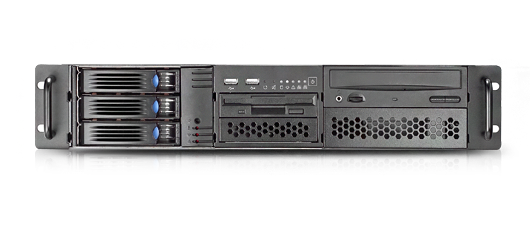

RM21600 (EOL)
2U Open Bay Server Chassis
It is designed with flexibility of utilizing four 5.25” drive bays to install ODD, tape drive and Chenbro SK family.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B up to 12” x 13”
  • Versatile configurations available via exposed 4 x 5.25” and 2 x 3.5” bays
  • Optional 4 x hot-swap fan modules
  • Supports 3-slot and 6-slot low profile rear windows
  • Tool-less design on 5.25” device installation
  • Supports 2U single or 1+1 redundant PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 2U
    M/B Form Factor Extended ATX (12” x 13”)
    Dimensions (Dx Wx H) 660 x 430 x 88 (mm), 26” x 16.9” x 3.5”
    Drive Bays External 3.5":2
    External 5.25":4
    PSU Form Factor 2U Single or 1+1 Redundant
    Indicators 1 x Power Status, 1 x HDD Activity, 2 x LAN Activity , 1 x Fan Failure and Overheat
    Front Control Power On/Off, Alarm Mute, System Reset, 2 x USB2.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle: 4 x 80mm (T=32mm) , Rear: 2 x 40mm (Option)
    Expansion Slots 3 x Full Height and Full Length or 6 x Low Profile
    HDD Backplane N/A
    Net Weight 8.8kg
    Gross Weight 12.7kg
    Front Bezel Option
    Cubic Feet 4.26
    Container Loading (Single Packing) 20’: 250, 40’: 520, 40’H: 575
  • Category Description Revision Size Download
    Datasheet RM21600 Datasheet V1.2 947.8 KB
    User Manual LED Board (80H033216-004), Features and Jumper Settings V1.0 266.5 KB
    User Manual RM21600 Quick Installation Guide V1.1 436.0 KB
  • Product category Part. No# Description Support

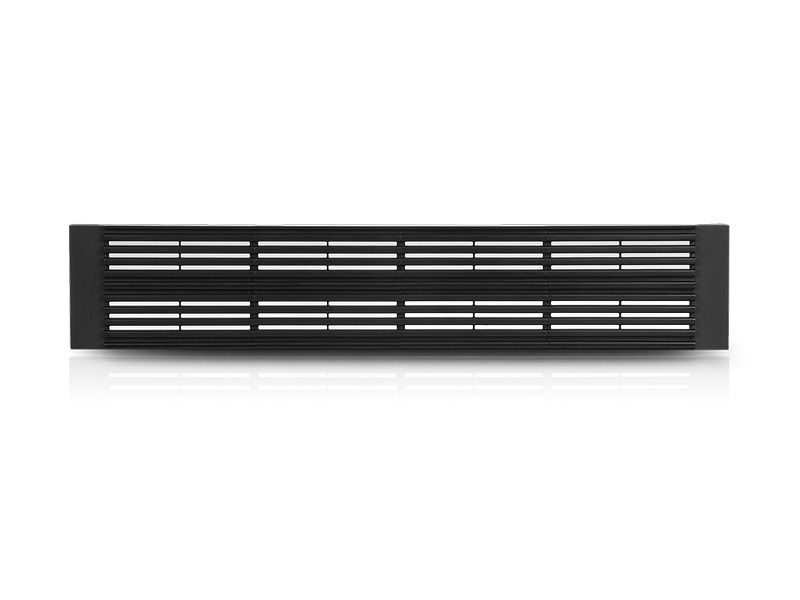

    Bezel
    84H321510-076
    Front Bezel, 2U, Plastic, Bricker

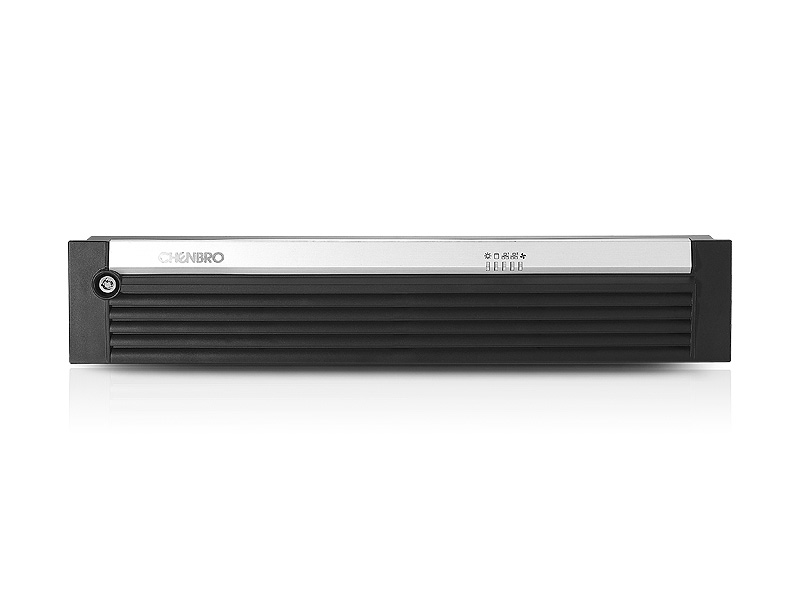

    Bezel
    84H321610-001
    Front Bezel, 2U, Plastic, SilFox

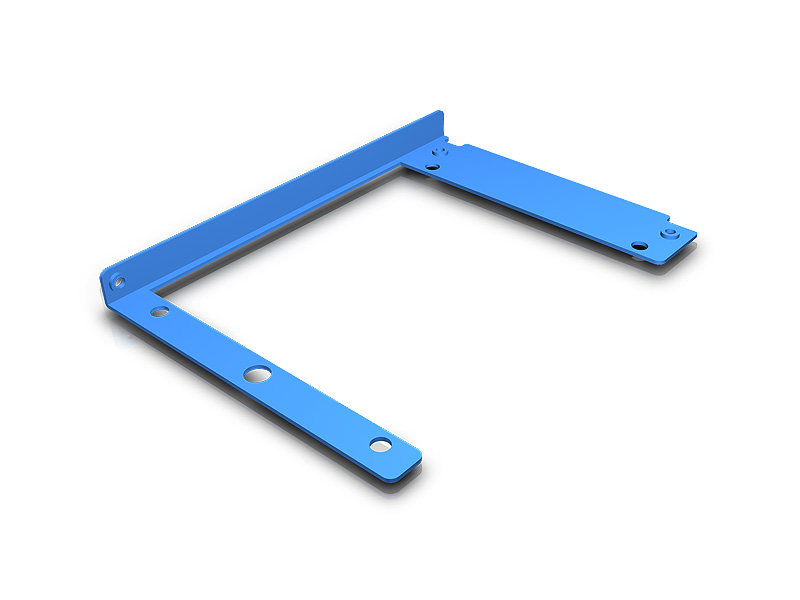

    Bracket
    84H321510-065
    Bracket, PSU, 2U, For R2G-5600V4V
    Cable
    84H342310-012
    Cable, USB3.0, 2-Port, w/3.5" Bracket(For 3.5" bay)

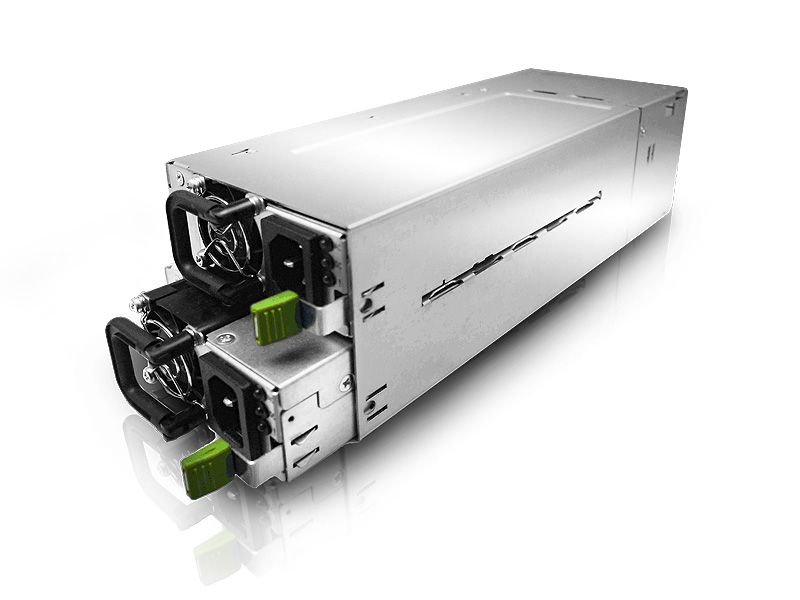

    Power Supply
    32H2062000202
    PSU, 1+1 Redundant, 620W, C2W-5620V, PMBus 1.1
    Power Supply
    32H2065001101
    PSU, 650W,1+1 Redundant, Acbel R2IS7651A-G, 80+ Gold, PM Bus V1.2
    Power Supply
    32H2082000202

    PSU, 1+1 Redundant, 820W, C2W-5820V, PMBus 1.1

    Power Supply
    32H2087501101
    PSU, 875W, 1+1 Redundant, Acbel R2IS7871A-G, 80+ Gold, PM Bus V1.2

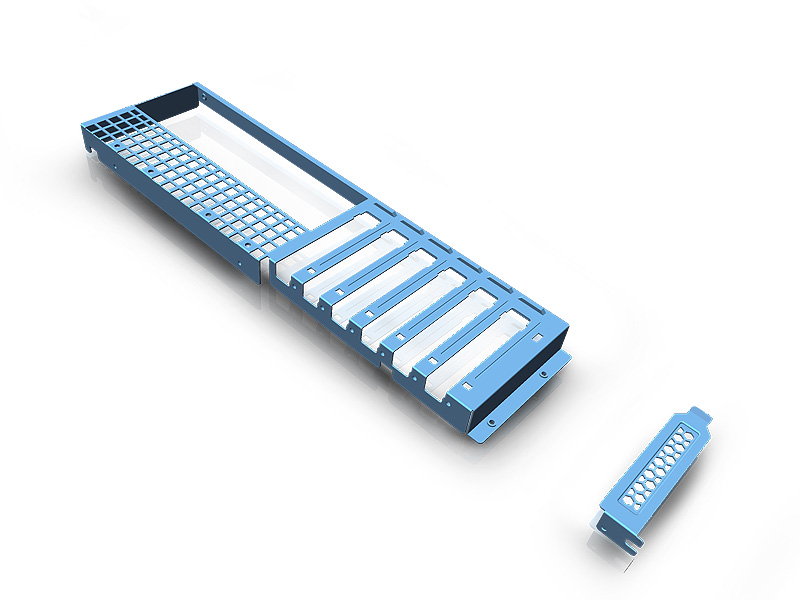

    Rear Window
    84H321210-050
    Rear window, 2U, Low Profile, 6-Slot
    Rear Window
    88H321400-001
    Rear window, 2U, Riser, 3-slot, Full Height
    Rrear Window
    84H321210-050
    Rear window, 2U, Low Profile, 6-Slot
    Rrear Window
    88H321400-001
    Rear window, 2U, Riser, 3-slot, Full Height

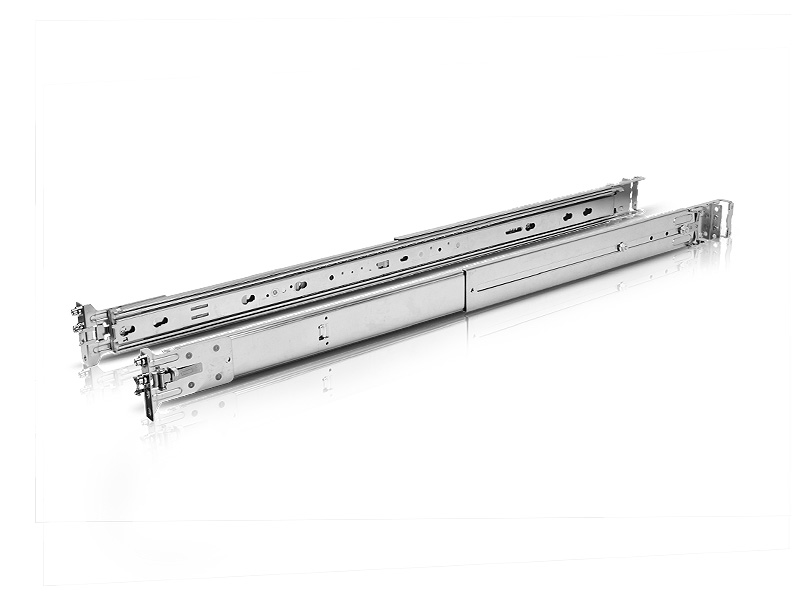

    Slide Rail
    84H341300-002

    Slide Rail, 21",For 2U/3U/4U

    Click Part. No# to view item picture
  • Order Code M/B Size HDD Backplane PSU Rear Window Slide Rail
    RM21600 12"x13" N/A Option 3-Slot, Riser Option
    RM21600-L 12"x13" N/A Option 6-Slot, LP Option
