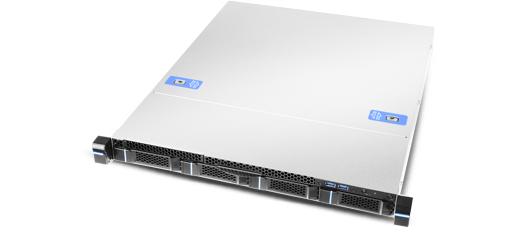

RM146 Plus Series

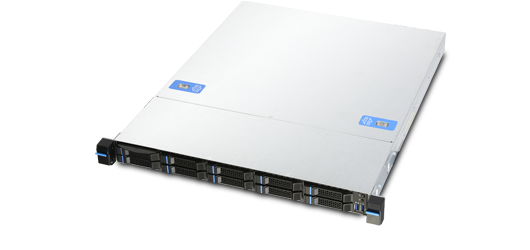

1U Easiest-to-Use Compact Server Chassis for SMBs
An excellent tool-less modular design of a 550mm-depth compact server chassis with high flexibility
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B size up to 12" x 9.6" ATX

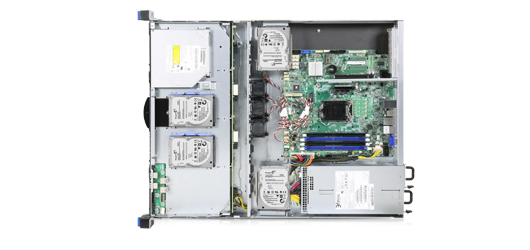

  • Modular designed HDD cage, supports 4 x 3.5" and 10 x 2.5" SAS/SATA HDD via 12Gb/s passive backplane
  • Tool-less & hot-swap 4 x 3.5’’ and 10 x 2.5” HDD tray
  • Built-in 3 x 4028 PWM fan, flexible for 28/48/56 mm-thickness, max to 6x
  • Front access information tag for easy server management

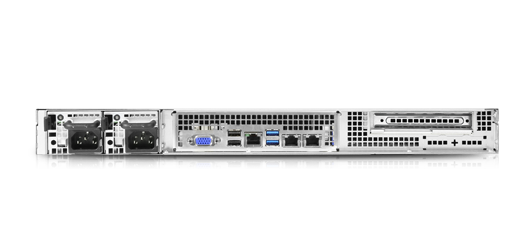

  • Supports 1U single and 1+1 1U redundant power supply
  • Optional tool-less ball bearing slide rail or cost effect friction rails

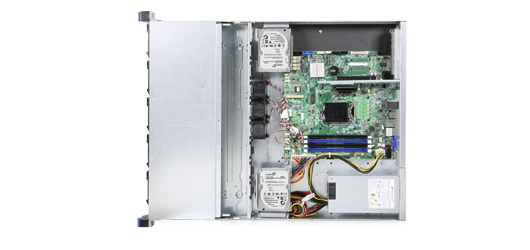

  • Optional internal 2 x 2.5" OS drive (T=9.5mm)
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor ATX (12" x 9.6")
    Dimensions (Dx Wx H) 545 x 438.5 x 43.5 (mm)
    21.46" x 17.27" x 1.72"

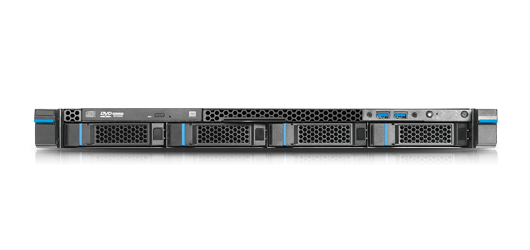

    Drive Bays RM14604 Plus (3.5" Hot-swap):4
    RM14604 Plus (2.5" Internal):2
    RM14604 Plus (Slim ODD):1
    Optional 2.5" (Internal) for OS:2

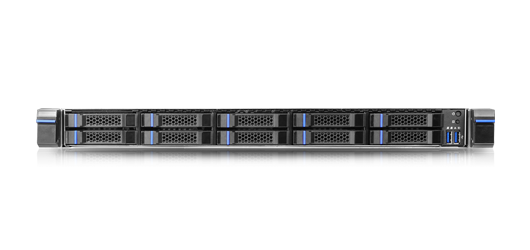

    RM14610 Plus (2.5" Hot-swap):10
    RM14610 Plus (2.5" Internal):2
    PSU Form Factor 1+1 Redundant or Single 1U
    Indicators 1 x Power Status
    2 x Lan Activity
    1 x UID
    1 x System Alarm
    1x HDD Status (RM14604 Plus Only)
    Front Control 1 x Power On/Off
    1 x UID
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fans Middle : 3 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)

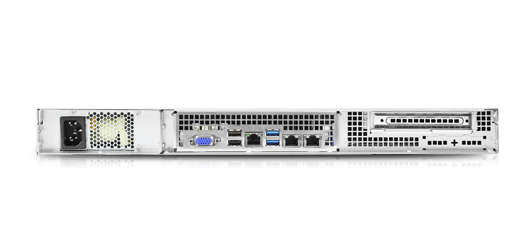

    Expansion Slots 1 x Full Height PCIe Gen3 x16
    HDD Backplane 4 x 3.5“ : 12Gb/s SAS/SATA (RM14604 Plus)
    4 x 3.5" : 12Gb/s Mini-SAS HD (RM14604 Plus)
    10 x 2.5” : 12Gb/s Mini-SAS HD (RM14610 Plus)
    Net Weight 7.5kg
    Gross Weight 10.0kg
    Front Bezel Option
    Cubic Feet 2.82
    Container Loading (Single Packing) 20': 480, 40': 960
  • Category Description Revision Size Download
    Datasheet RM146 Plus Series Datasheet V1.3 2.1 MB
    User Manual RM146 Plus Series installation manual and settings V1.0 2.8 MB
  • Product category Part. No# Description Support

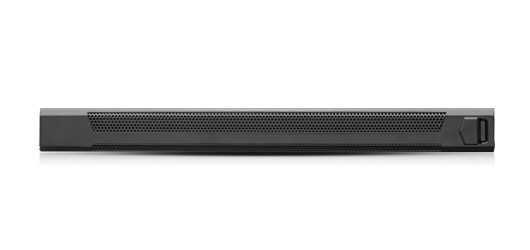

    Bezel
    384-14605-3100A0
    Front Bezel, 1U, Metal, Black

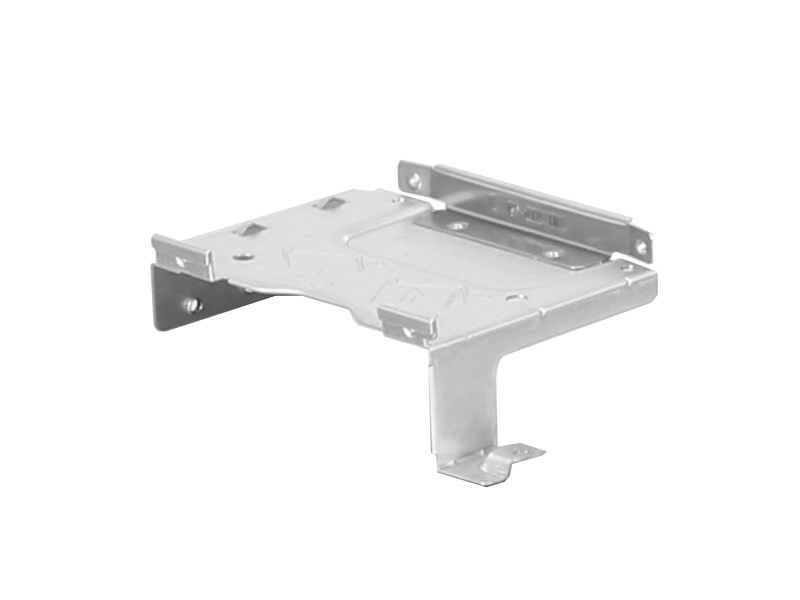

    Bracket
    384-14601-3200A0

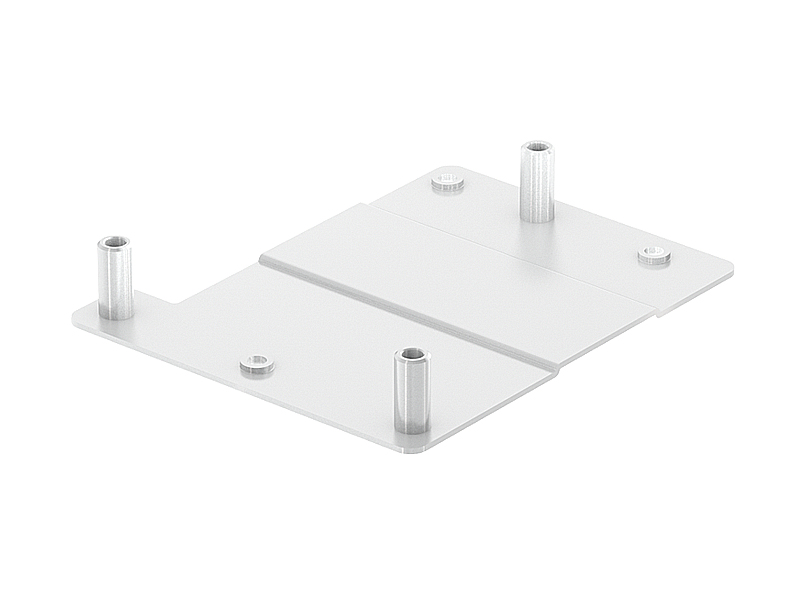

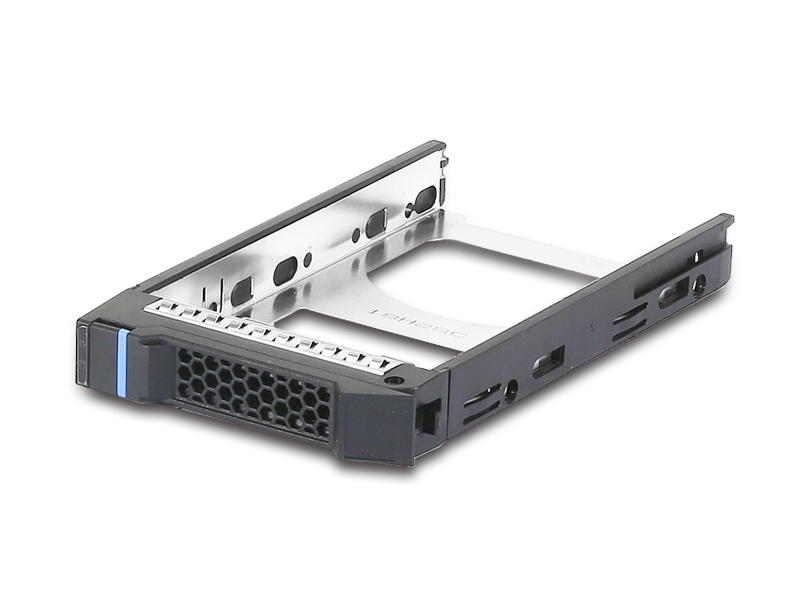

    Bracket, 2.5" HDD, Internal, Tool-less
    Bracket
    84H314610-022
    IOM Bracket,RM14604
    Cable
    126-13311-3000A0
    Cable, Display, 900mm
    Cable
    126-13311-3001A0
    Cable, Display, 900mm, RM13310e001,20-pin header to 17-pin(Discrete Pin)
    Cable
    126-13311-3002A0
    Cable, Display, for Supermicro M/B, 900mm
    Cable
    126-13311-3003A0
    Cable, Display, 900mm, RM13310e001, for Supermicro M/B

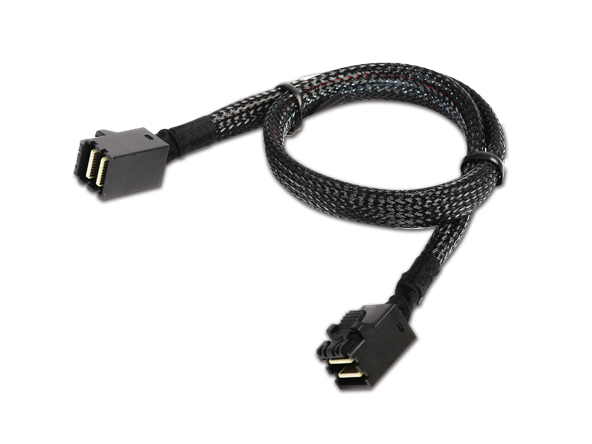

    Cable
    126-14512-3021A0
    Mini-SAS HD to mini-SAS HD, 850mm
    Cable
    126-14612-3000A0
    Mini-SAS HD to 4*SATA(Host), w/Sideband, 540mm
    Cable
    126-23612-3005A0
    Mini-SAS HD to Mini-SAS HD, 600mm
    Cable
    26H03313601A0

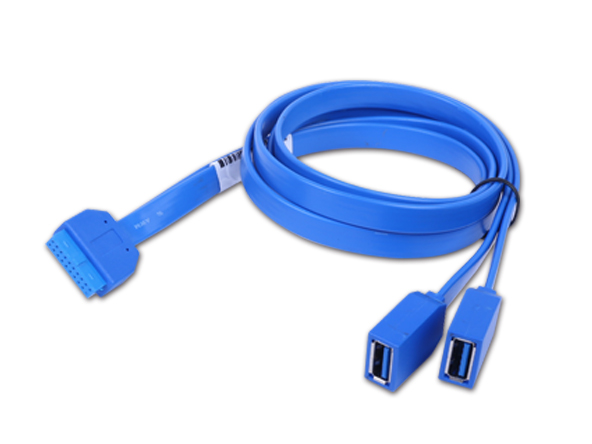

    USB3.0, 20P to Type A plug, 750 mm
    Cable

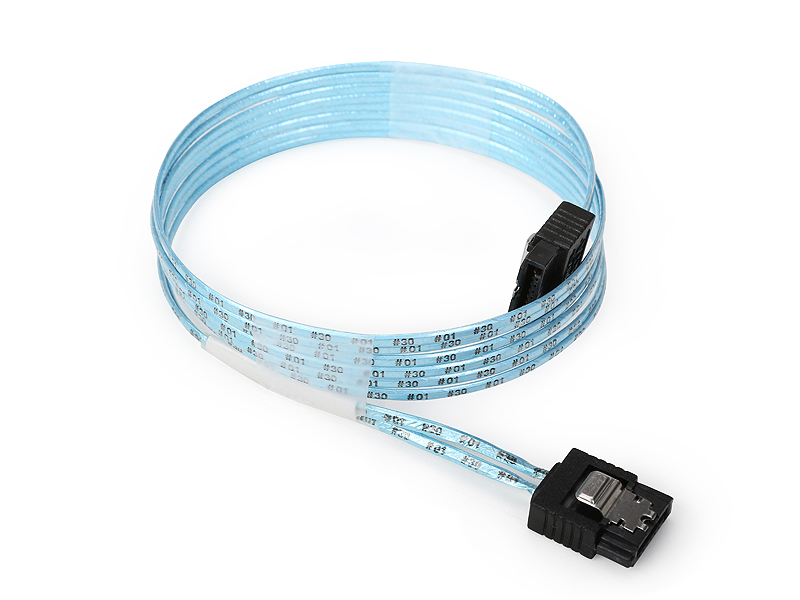

    384-14620-3307A0
    CABLE, SATA III, 650MM, W/LOCK

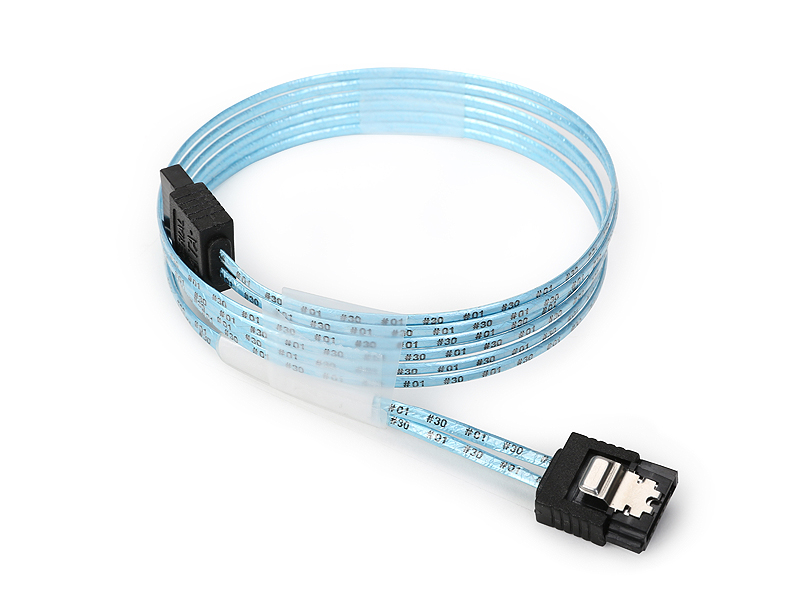

    Cable
    384-14620-3310A0
    CABLE, SATA III, 450MM, W/LOCK
    Cable
    384-14620-3311A0
    CABLE, SATA III, 550MM, W/LOCK
    HDD Tray
    383-14655-3034B0
    2.5" HDD Tray, screw-on
    HDD Tray
    84H314610-005
    3.5" HDD Tray(#83H553146-007),panel BK CC1012/BL CC8103(#285C), screw-on,  50pcs/CTN

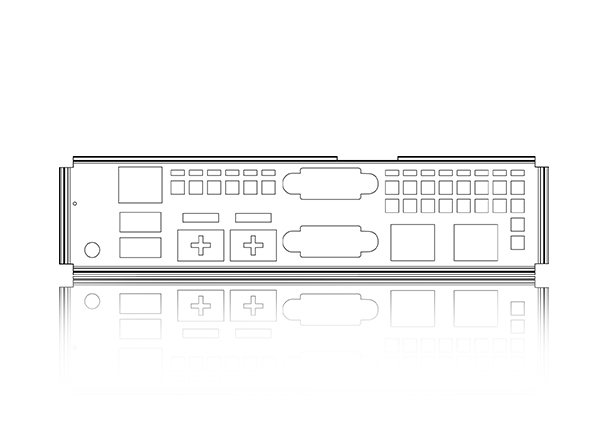

    I/O Shield
    84H314610-009
    1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    I/O Shield
    84H314610-018
    1U, For Asrock D1541D4U-2T8R
    Packing
    370-13310-3005A0
    Screw Packing, 2.5" HDD, M3*3.5, Flat, 60H141230-034*12PCS,  for screw-on HDD tray
    Packing
    370-13310-3006A0
    Screw Packing,  3.5" HDD, #6-32 L4, Flat, 60H151103-042*16PCS,  for screw-on HDD tray
    Power Supply
    132-20350-1201B0
    PSU, 1+1 redundant, 350w
    Power Supply
    384-14620-3316A0
    PSU, 400W,FSE001-7HAG,w/PFC,Full Range,P20+4:235mm/P8:280mm,w/Bracket,Acbel,20PCS/CTN
    Power Supply
    84H314610-020
    PSU, 400W, w/Active PFC, 80+ Gold, FSP400-60FGGBA(32H1040000703) w/bracket
    Rack Handle

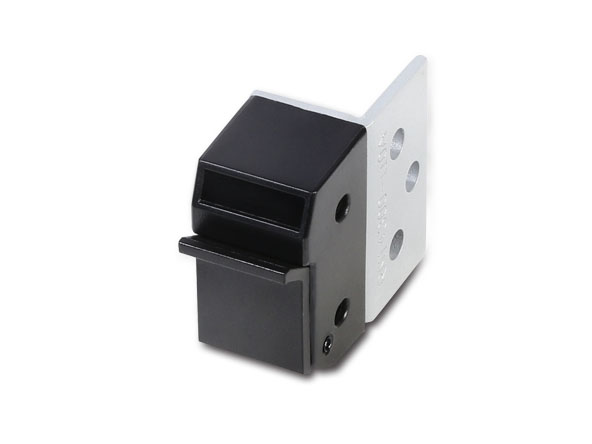

    384-14609-3100A0

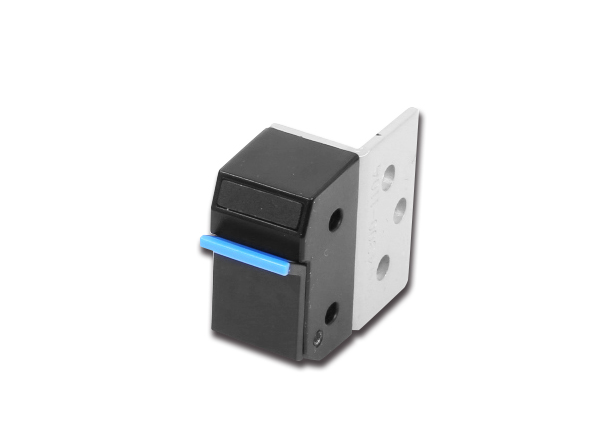

    Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle

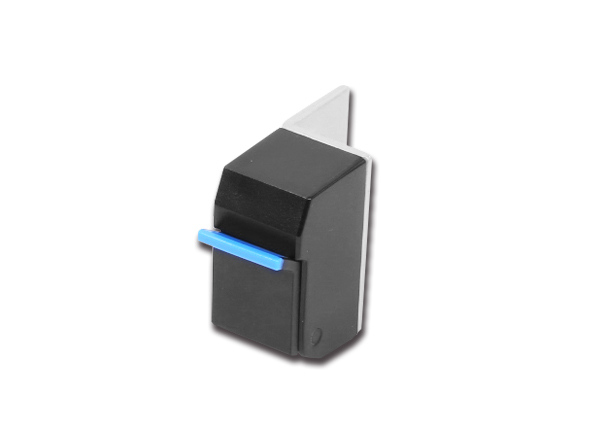

    84H314610-024

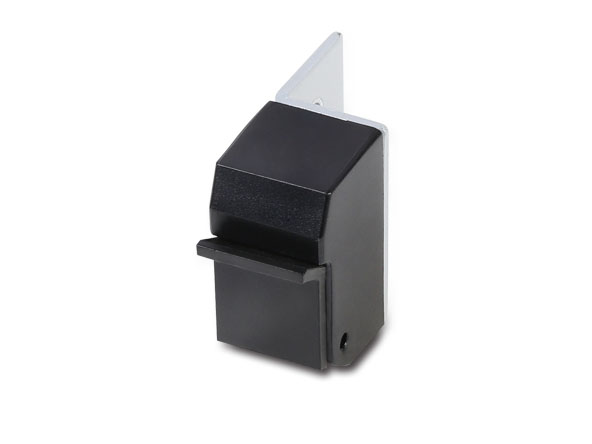

    Latch-type Rack Handle (Left)
    Rack Handle
    84H314610-025
    Latch-type Rack Handle (Right)

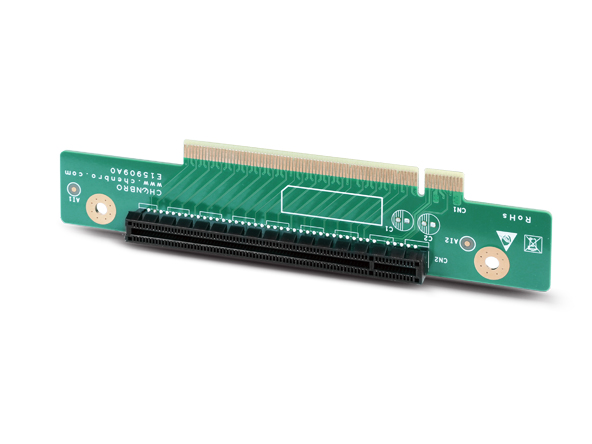

    Riser Card
    84H314610-023
    Riser card with bracket, PCI-e 16x, Gen 3, Rev.A0

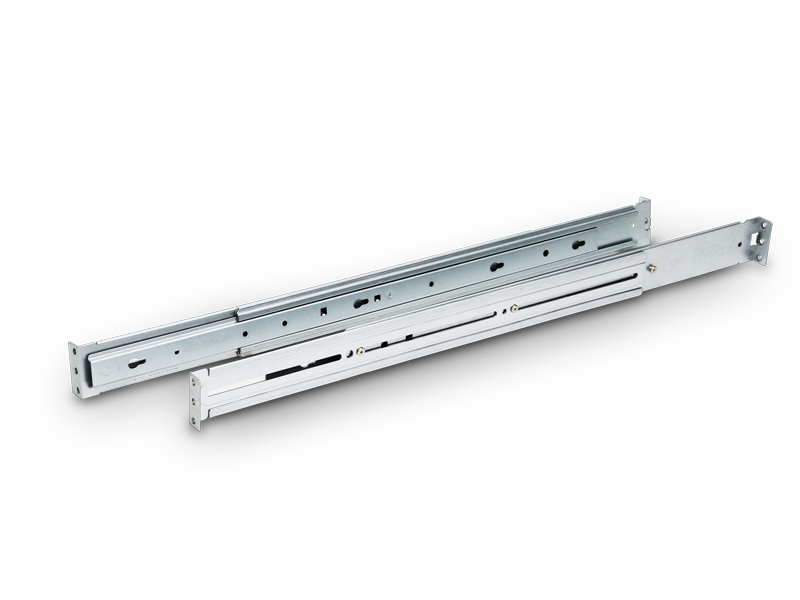

    Slide Rail
    384-14303-3100A0
    AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-14303-3101A0
    AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    84H314610-003
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code Middle Fan HDD Backplane PSU
    RM14604PT3 3 x 4028 12Gb/s SAS/SATA Option
    RM14604PT3-400 3 x 4028 12Gb/s SAS/SATA 400W Single
    RM14604PT3-R350 3 x 4028 12Gb/s SAS/SATA 350W RPSU
    RM14610PM3 3 x 4028 12Gb/s Mini-SAS HD Option
    RM14610PM3-R350 3 x 4028 12Gb/s Mini-SAS HD 350W RPSU
