RM14300

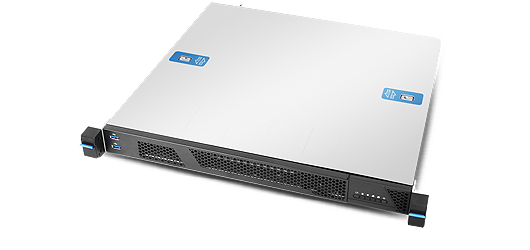

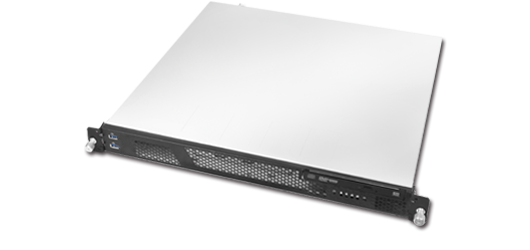

1U Front and Rear I/O Compact Server Chassis

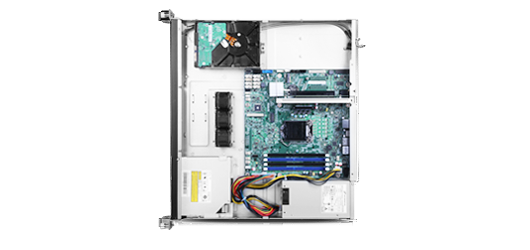

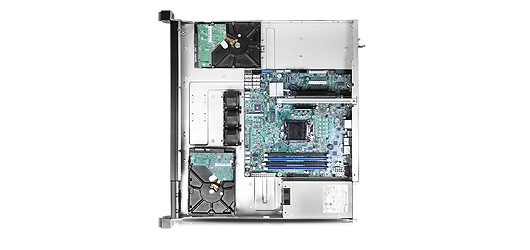

Supporting front I/O and rear I/O, and accommodating either three 3.5” and three 2.5” SATA HDDs or six 2.5" HDDs, RM14300 provides highly flexible configuration for various applications.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits

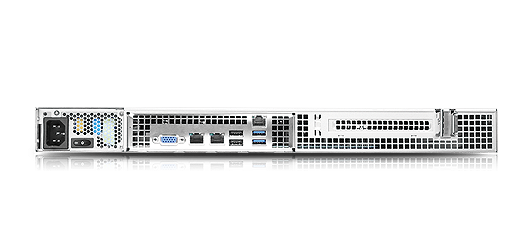

  • Supports front and rear motherboard I/O access (Front I/O : BTO with MOQ)
  • Tool-less(RM14300-EZ) or non Tool-less(RM14300) HDD carrier for concurrent 3.5" and 2.5" HDD installation
  • Flexible HDD configurations via optional HDD carriers
  • Anti-vibration 40mm PWM fan (up to thickness 48mm)
  • Supports Flex ATX PSU
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor Micro ATX
    Dimensions (Dx Wx H) 405.5 x 438.2 x 43.2 (mm)
    15.96" x 17.25" x 1.7"
    Drive Bays Internal 3.5":2
    Internal 2.5":2

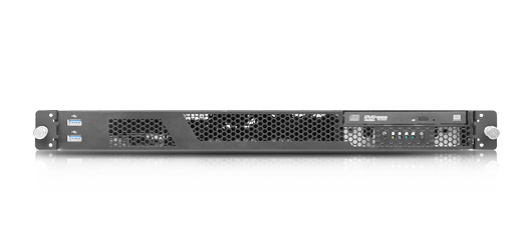

    Slim ODD:option
    PSU Form Factor Flex ATX
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Status

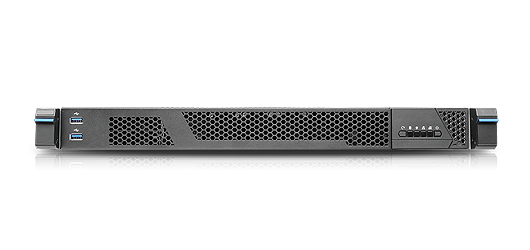

    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB3.0
    System Security N/A
    Cooling Fans 3x 40mm(T=28mm, up to 48mm), PWM
    Expansion Slots 1 x Full Height
    HDD Backplane N/A
    Net Weight 4.15Kg
    Gross Weight 6.22Kg
    Cubic Feet 1.24
    Container Loading (Single Packing) 20': 320, 40': 640, 40'H:720
  • Category Description Revision Size Download
    Configuration Guide RM14300 Configuration Guide V1.0 441.1 KB
    Datasheet RM14300 Datasheet V1.2 973.5 KB
    Quick Installation Guide(QIG) RM14300 QIG V1.1 7.9 MB
    Technical Product Specification (TPS) RM14300 TPS V1.0 3.0 MB
  • Product category Part. No# Description Support
    Air Duct
    50H353149A005
    PC black, For Intel S1200SPO/ S1200SPL/S1200SPS
    Cable
    26H03342203A0
    USB 3.0 Type A, 750 mm
    Cable
    26H12314515A0
    SATA (Host) to SATA, 600mm (2.5” HDD/SSD)
    HDD Carrier
    84H314310-007
    Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    HDD Carrier
    84H314310-008
    1 x 2.5" HDD Bay (3.5" to  2.5")
    HDD Carrier
    84H314910-092
    Non Tool-Less HDD Carrier, 1 x 3.5" HDD +  1 x 2.5" SSD
    I/O Shield
    84H314610-009
    1U, For Intel S1200SPO/ S1200SPL/S1200SPS
    Power Supply
    32H1022000702
    200W, Single, Flex ATX, FSP

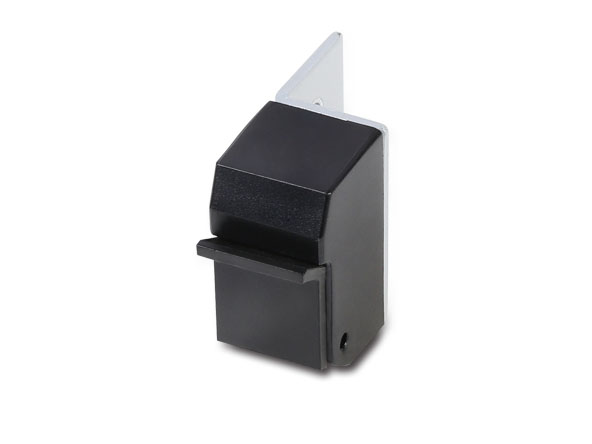

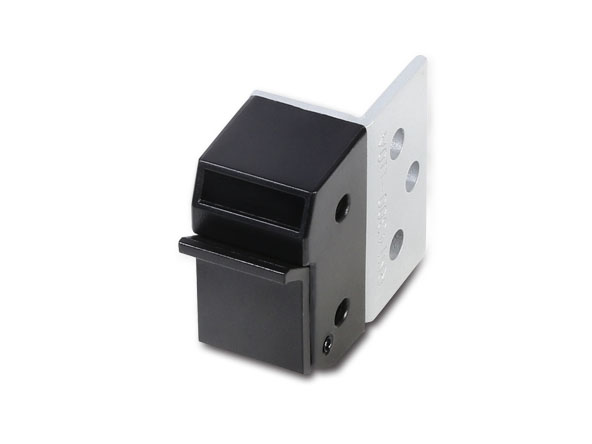

    Rack Handle
    84H314310-009
    Latch-type Rack Handle (Left)
    Rack Handle
    84H314310-010
    Latch-type Rack Handle (Right)
    Riser Card
    80H09313703A1
    1U, 1 Slot, PCI-e 8x
    Riser Card
    80H09319001D0
    PCI-e 16x, Gen 3, Rev. D0
    Slide Rail
    384-14303-3100A0
    AS'Y COMPONENT,RM14300,SIMPLE RAIL LONG,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    384-14303-3101A0
    AS'Y COMPONENT,RM14300,SIMPLE RAIL SHORT,W/SCREW PACKING+BOX,1SET/BOX
    Slide Rail
    84H314610-003
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code Slim ODD Bay Tool-less USB 2.0 Middle Fan PSU Slide Rail
    RM14300FP2 x 1 NA 2x 2.0 3x 4028 200W Flex ATX Option
    RM14300S1FP2 NA Top Cover, HDD Holder 2x 3.0 3x 4028 200W Flex ATX Option
    RM14300SFP2 NA NA NA ( FIO ) 3x 4028 200W Flex ATX Option
