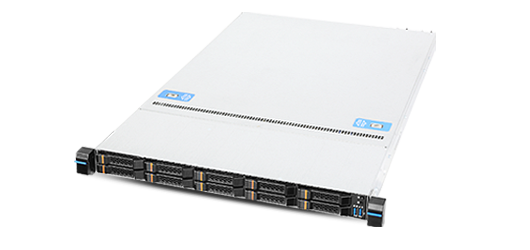

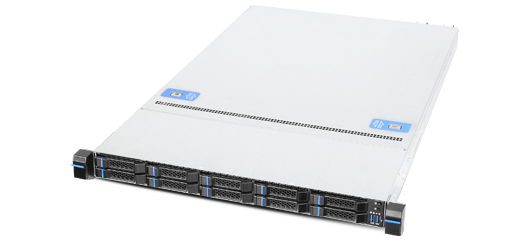

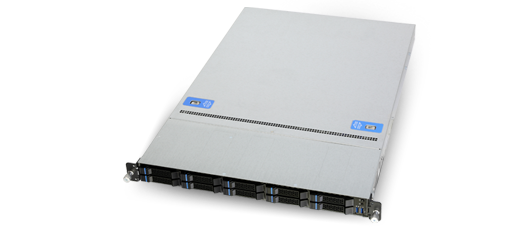

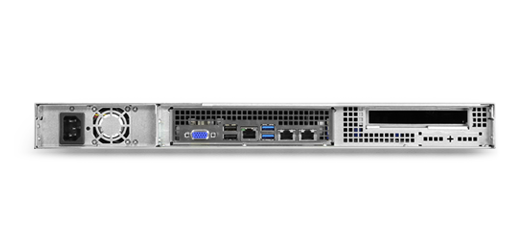

RM133 Series
1U Dual Socket General Purpose Modular Server Chassis
A new generation of 1U universal server chassis, built in 12Gb/s hot-swap backplane and adopting fans with smart speed control, maximizing the performance of dual socket motherboard.
Compare
Quick Search
  • By Chassis Type
  • By Motherboard
  • By RAID Card
  • By Power Supply
Compare
Features & Benefits
  • Supports M/B size up to 12" x 13"
  • Tool-less installation HDD tray 2.5" and 3.5" HDD/SSD
  • 12Gb/s mini-SAS HD backplane with smart fan control
  • Supports fan thickness up to 56mm
  • Front access information tag for easy server management

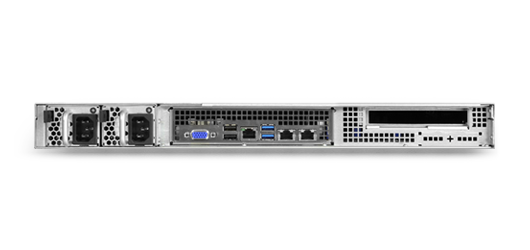

  • Supports 1+1 redundant PSU
  • Optional easy-to-use tool-less or cost effective friction rails avail
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • Form Factor 1U
    M/B Form Factor E-ATX (12" x 13")
    Dimensions (Dx Wx H) 657.5 x 438.5 x 43.5 (mm)
    25.89”x 17.27” x 1.72”

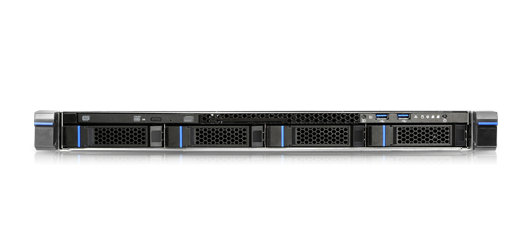

    Drive Bays RM13304 3.5" Hot-swap:4

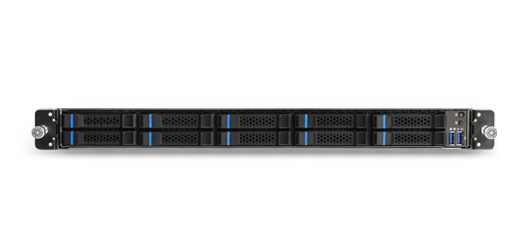

    RM13310 2.5" Hot-swap:10

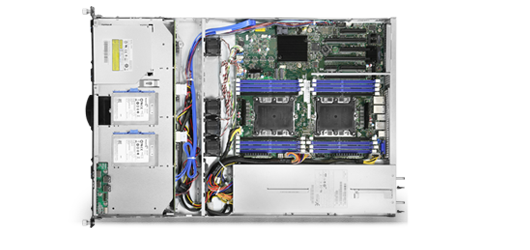

    RM13304 2.5" Internal:2
    RM13304 Slim ODD:1
    PSU Form Factor 1U Single, 1U 1+1 Redundant
    Indicators 1 x Power Status
    2 x LAN Activity
    1 x HDD Status
    1 x UID
    1 x System Status
    Front Control 1 x Power On/Off
    1 x UID
    2 x USB3.0
    System Security Intrusion Switch (Option)
    Cooling Fans RM13304 Middle: 4 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)

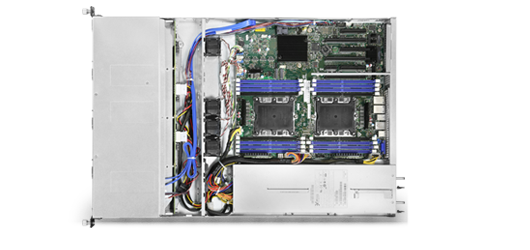

    RM13310 Middle: 5 x 40mm (T=28mm) (Maximum to T=56mm, Up to 6 units)
    Expansion Slots 1 x Full Height & Half Length
    HDD Backplane RM13304: 4-Port 12Gb/s SAS/SATA
    RM13310: 10-Port 12Gb/s Mini-SAS HD
    Net Weight 10.52Kg
    Gross Weight 14.59Kg
    Front Bezel Option
    Cubic Feet 3.00
    Container Loading (Single Packing) 20':240, 40':528
  • Category Description Revision Size Download
    Datasheet RM133 Series Datasheet V1.1 430.6 KB
    User Manual RM133 Series User Manual V.1.0 6.4 MB
  • Product category Part. No# Description Support

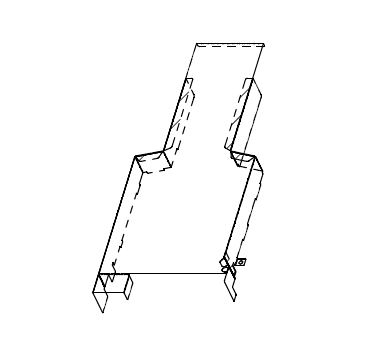

    Air Duct
    350-13335-3400A0
    PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4056FAN*4PCS)

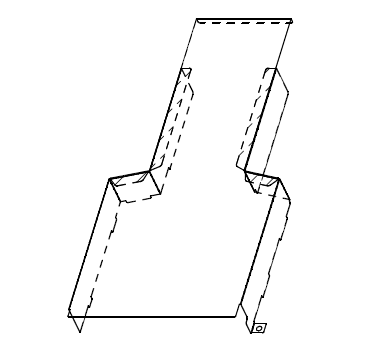

    Air Duct
    350-13335-3401A0
    PLASTIC,AIR DUCT,PC MYLAR,UL94V0,BK,FOR S2600ST (4028FAN*3PCS/4PCS)
    Backplane
    380138103000B0
    10-port 12Gb/s Mini-SAS HD Backplane
    Backplane
    80H10314603A0
    4-port 12Gb/s SATA Backplane
    Cable
    126-13311-3000A0
    Cable, Display, 900mm
    Cable
    26H03313601A0
    USB3.0, 20P to Type A plug, 750 mm
    Cable
    384-14620-3307A0
    CABLE, SATA III, 650MM, W/LOCK
    Cable
    384-14620-3310A0
    CABLE, SATA III, 450MM, W/LOCK
    Cable
    384-14620-3311A0
    CABLE, SATA III, 550MM, W/LOCK

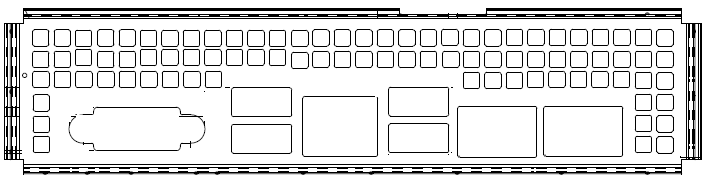

    I/O Shield
    384-13314-3200A0
    I/O GASKET, Intel S2600ST
    I/O Shield
    84H313610-022
    I/O GASKET, Supermicro X9DRD-7LN4F, X9DRH-7F, X10DRi & X11SSH
    I/O Shield
    84H314610-018
    1U, For Asrock D1541D4U-2T8R
    Power Supply
    132-10500-0502A0

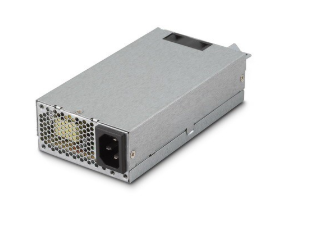

    PSU, SINGLE, 500W, FSP500-50FSPT
    Power Supply
    132-20650-0500A0
    PSU, 1+1 redundant,650W,FSP - RPSU - YH5651-1MA07R
    Rack Handle
    384-14609-3100A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Left
    Rack Handle
    384-14609-3101A0
    Cabinet Mounting EAR, plastic part with latch, Black/Black, Right
    Rack Handle
    84H314610-024
    Latch-type Rack Handle (Left)
    Rack Handle
    84H314610-025
    Latch-type Rack Handle (Right)
    Riser Card
    380-14609-3000B0
    PCI-e x16 Riser Card
    Slide Rail
    384-23803-3300C0
    32.8“, P2P:26.3" to 36.9", Traveling Distance 30.7", Loading Weight 30.8 Kg, Tool-less
    Slide Rail
    84H314610-003
    Slide Rail, 23.6“, P2P:26" to 33", Traveling Distance 22", Loading Weight 18.8 Kg, Tool-less
    Click Part. No# to view item picture
  • Order Code USB 2.0 Middle Fan HDD Backplane PSU
    RM13304T3FP5 3.0 x 2 4 X 4028 4-Port 12Gb/s SAS/SATA 500W, Single, FSP
    RM13304T3RP6 3.0 x 2 4 X 4028 4-Port 12Gb/s SAS/SATA 650W, 1+1 Redundant, Acbel
    RM13310M3RP6 3.0 x 2 5 X 4028 10-Port 12Gb/s MINI-SAS HD 650W, 1+1 Redundant, Acbel
    RM133N10-R650 3.0 x 2 5 X 4028 10-port 12Gbps NVME Backplane 650W, 1+1 Redundant, Acbel
